Time Series Analysis - ARIMA Models - MA(2) process

[Home] [Up] [Basics] [AR(1) process] [AR(2) process] [AR(p) process] [MA(1) process] [MA(q) process] [ARMA(1,1) process] [ARMA(p,q) process] [Wold's decomp.] [Non stationarity] [Differencing] [Behavior] [Inverse Autocorr.] [Unit Root Tests] [MA(2) process]

f. The MA(2) process

By definition the MA(2) process is

Time Series Analysis - ARIMA Models - MA(2) process


which can be rewritten on using (V.I.1-139)


where Wt is a stationary time series, et is a white noise error component, and Ft is the forecasting function.

into eq. (V.I.1-46) and (V.I.1-45) we obtain


Hence the theoretical ACF can be deduced


The invertibility conditions can be shown to be


(compare with the stationarity conditions of the AR(2) process).

The deduction of the theoretical PACF is rather complicated but can be shown to be dominated by the sum of two exponentials (in case of real roots), or by decreasing sine waves (in case the roots are complex).

These two possible cases are shown in figures (V.I.1-5) and (V.I.1-6).

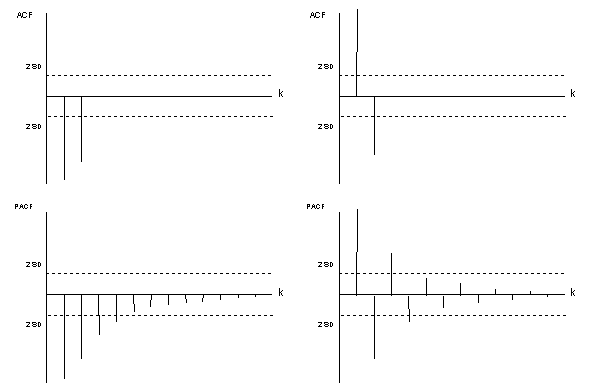

(figure V.I.1-5)

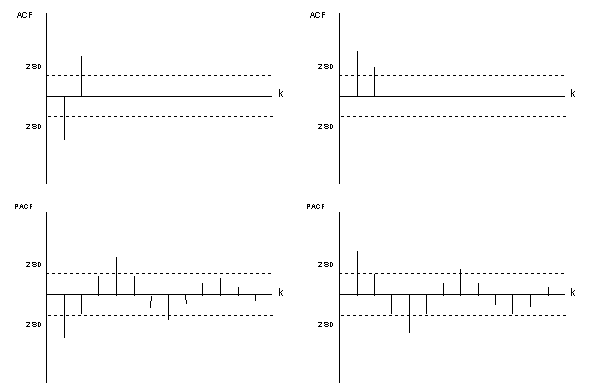

(figure V.I.1-6)
